Tecno 2: water tank level sensor
Tecno 2 level regulator for applications in wells, tanks and plants
The Tecno 2 level regulator is designed for applications in wells, tanks and purification plants, offering a reliable solution for clear water level control. With a rated current of 10(8) A / 250 V, this product is equipped with a high-performance microswitch and self-cleaning contacts.
Thanks to its advanced construction technology, the quality of the components used and strict production controls, the Tecno 2 electromechanical level sensor is highly reliable and competitively priced. This makes it ideal for a wide range of civil and industrial applications where clear water levels need to be monitored and controlled.
Tecno 2 is equipped with a 21A microswitch, making it suitable for motor applications up to 2HP. The external case, made of shockproof polypropylene, is sealed by overmolding.
The Tecno 2 level regulator is available in a variety of colors

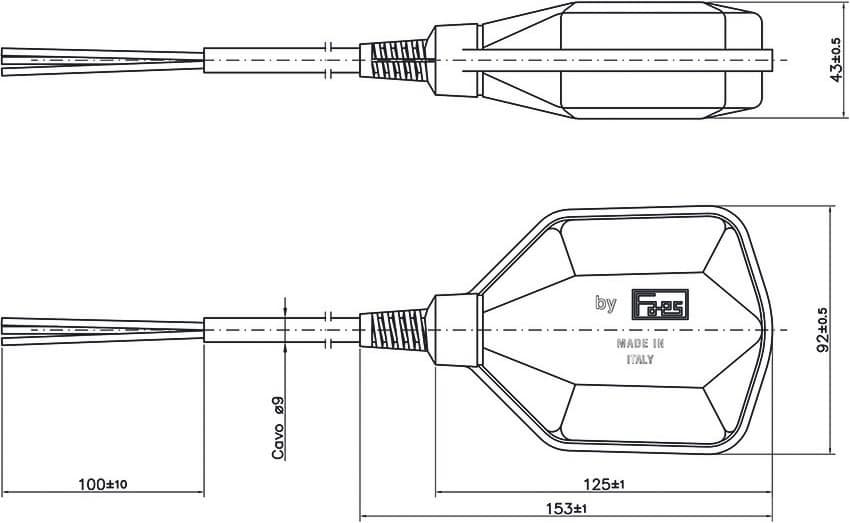

Technical drawing

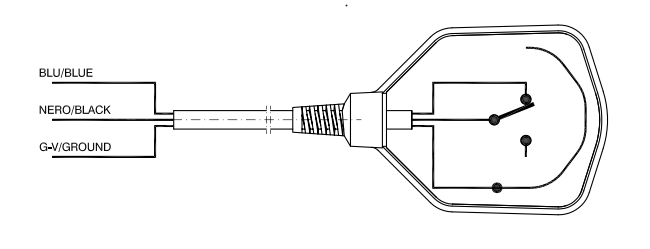

NO or NC version with ground
(Insulation class I)

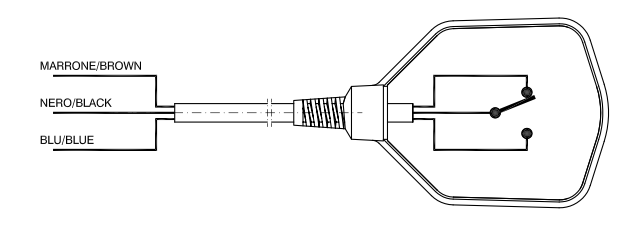

Dual function version
(Insulation Class II)
Main features
- Type of product: water level regulator
- Type of water: Clear water
- Dimensions: 153x92x43 mm
- Weight: 170 g
- Cubage: 280 cm³
- Floating body’s material: shockproof non-toxic polypropylene
*For the version with earth specify, when ordering, if it should be used for filling or emptying.
Specifications
- Operating temperature: 50 °C
- Storage temperature: -20÷80 °C
- Operating voltage: 230 Vac
- switching voltage: 250 Vac
- Frequency: 50-60 Hz
- Upper switching angle: 30° ±5°
- Lower switching angle: 30° ±5°
- Current with resistive load: 10 A
- Current with inductive load: 8 A
- Microswitch capacity: 21 A
- Protection level: IP 68
- operating pressure: 2 Bar
Standard cables
PVC H05VV-F 3×1 – Ø 9 mm
(double function)
H07RN-F 3G1 – Ø 8,8 mm
(emptying or filling, on request)
H07RN-F 3×1 – Ø 8,8 mm
(double function)
H05RN-F 3×1 – Ø 7,5 mm
(double function)
H07RN8-F 3G1 oil resistant – Ø 8,8 mm
(emptying or filling, on request)
