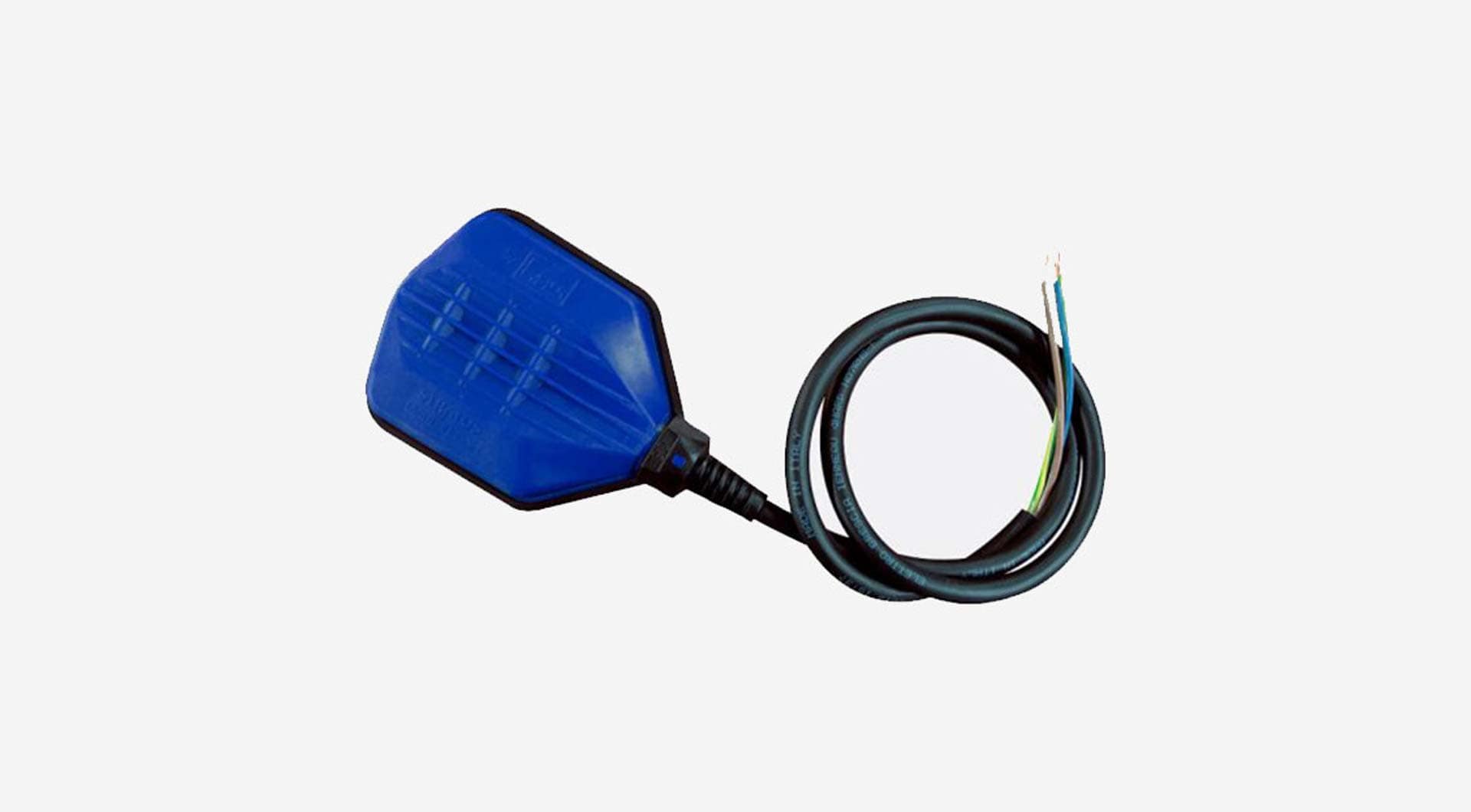

Stratos: water purification system level regulator
Stratos: water purification system level regulator for clear water
The Stratos level regulator is designed for high performance in all applications and especially under high pressures.
With a current rating of 10(8) A / 250 V and a high-performance microswitch with self-cleaning contacts, STRATOS ensures efficient and long-lasting operation.
Thanks to its internal honeycombed structure and reinforced bars, this level regulator can withstand up to 5 bar pressure, which makes it ideal for controlling the level of non-aggressive liquids at depths of up to 50 meters.
The external case, made of impact-resistant fiberglass-filled polypropylene, is sealed with PP overmolding, guaranteeing exceptional resistance to shocks and the most severe environmental conditions.
Available in a variety of colors, the Stratos is versatile and adapts perfectly to different needs.

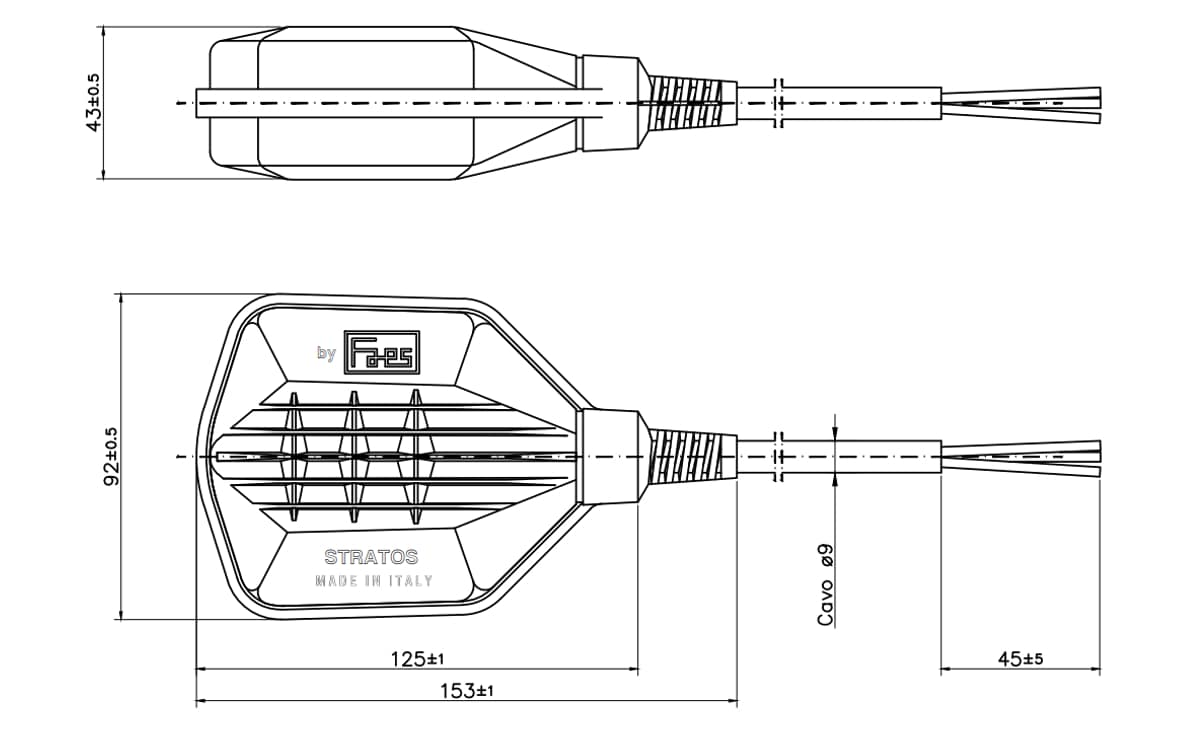

Technical drawing

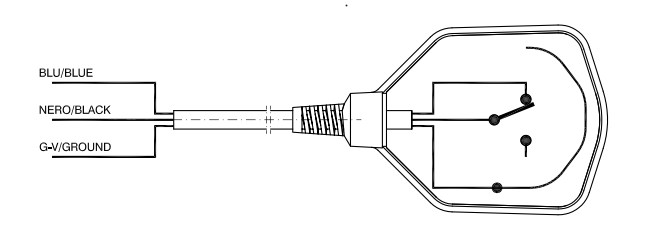

NO or NC version with ground
(Insulation class I)
Dual function version
(Insulation Class II)
Main features
- Product type: Level regulator
- Water type: Clear water
- Dimensions: 153x92x43 mm
- Weight: 190 g
- Cubage: 285 cm³
- Floating body’s material: shockproof polypropylene 20% charged with glass fiber
*FOR THE VERSION WITH EARTH, SPECIFY, WHEN ORDERING, IF IT SHOULD BE USED FOR FILLING OR EMPTYING
Specifications
- Operating temperature: 50 °
- Storage temperature: -20÷80 °C
- Operating voltage: 230 Vac
- Switching voltage: 250 Vac
- Frequency: 50-60 Hz
- Upper switching angle: 30° ±5°
- Lower switching angle: 30° ±5°
- Current with resistive load : 10 A
- Current with inductive load: 8 A
- Microswitch capacity: 21 A
- Protection level: IP 68
- Operating pressure: 5 Bar
Standard cables
H07RN-F 3G1 – Ø 8,8 mm
(emptying or filling, on request)
H07RN-F 3×1 – Ø 8,8 mm
(double function)
H07RN8-F 3G1 oil resistant – Ø 8,8 mm
(emptying or filling, on request)
