Easycon: level regulator with plug
Easycon: level regulator for liquids with plug
Our Easycon level regulator with a current rating of 10(8) A / 250 V is designed with a high-performance microswitch with self-cleaning contacts and is used for clear water level control.
The advanced construction technology, high-quality components, the innovative design and the stringent production controls make the device’s electromechanical sensor highly reliable and cost-effective.
Easycon’s external case is made of impact-resistant polypropylene, sealed by overmolding. EASYCON combines advanced technology and high-quality materials to ensure superior performance and safety.

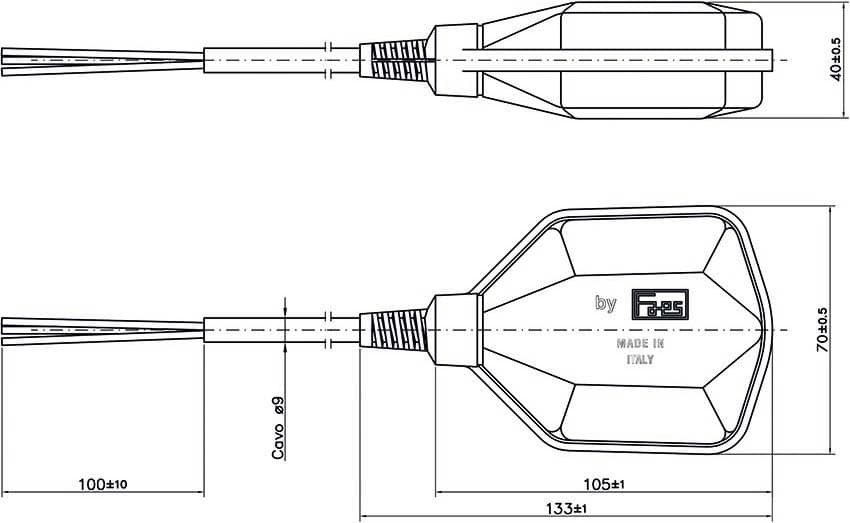

Technical drawing

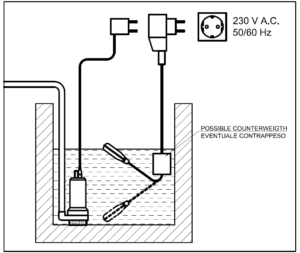

Technical scheme
Main features
- Product type: Level regulator
- Type of water: Special applications
- Dimensions: 153x92x43 mm
- Weight: 170 g
- Cubage: 280 cm³
- Floating body’s material: shockproof non-toxic polypropylene
WHEN ORDERING, SPECIFY WHETHER IT IS TO BE USED FOR FILLING OR EMPTYING.
Specifications
- operating temperature: 50 °
- Storage temperature: -20÷80 °C
- Operating voltage: 230 Vac
- switching voltage: 250 Vac
- Frequency: 50-60 Hz
- Upper switching angle: 30° ±5°
- Lower switching angle: 20° ±5°
- Current with resistive load: 10 A
- Current with inductive load: 8 A
- Microswitch capacity: 21 A
- Protection level: IP 68
- operating pressure: 2 Bar
Standard cables
H07RN8-F 3G1 oil resistant – Ø 8,8 mm
(emptying or filling, on request)
H07RN8-F 3G1 – Ø 8,8 mm
(emptying or filling, on request)
