Jolly: clear water float level regulator
Jolly: clear water float level regulator for direct application on electric pumps
Jolly is our float-operated clear water level regulator with a compact design. These features make it suitable for direct application on electric pumps and it can be installed in small spaces and drains.
With a rated current of 10(4) A / 250 V, it is equipped with a high-performance microswitch with self-cleaning contacts.
It can withstand up to 5 bar of pressure and its reinforcement points make it ideal for use on submersible pumps, even at considerable depths. The outer casing, made of shockproof polypropylene, is heat-sealed by overmoulding.

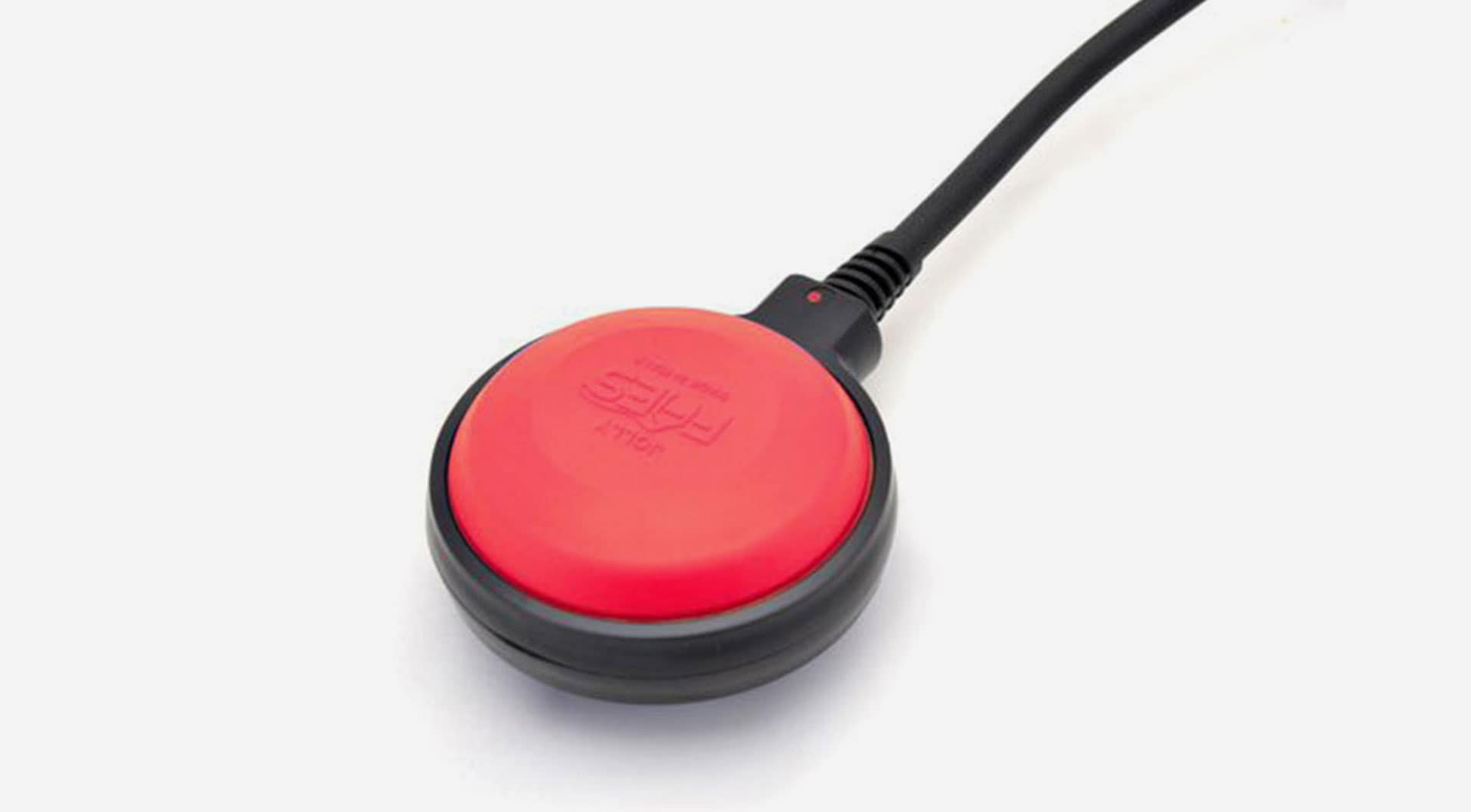

Jolly is available in a variety of colors

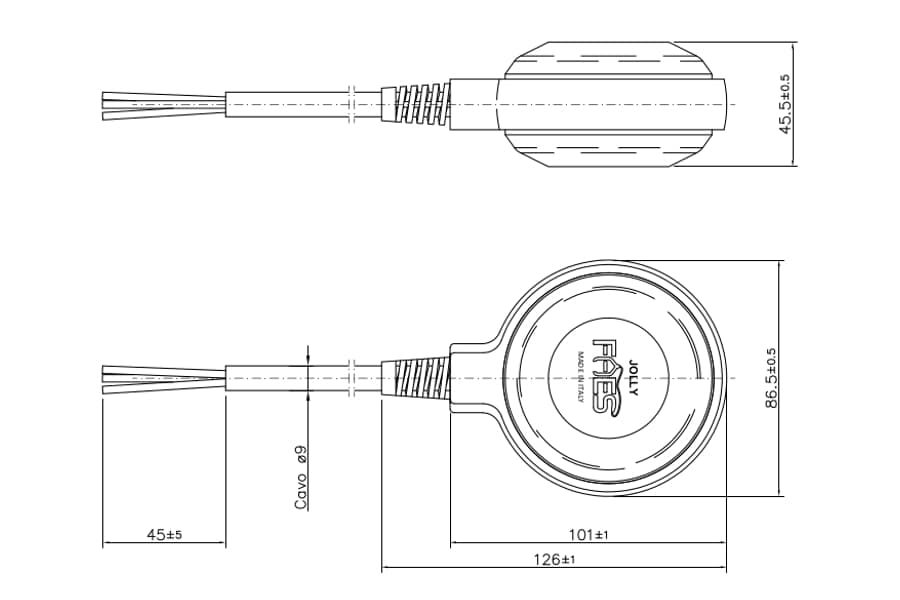

Technical drawing

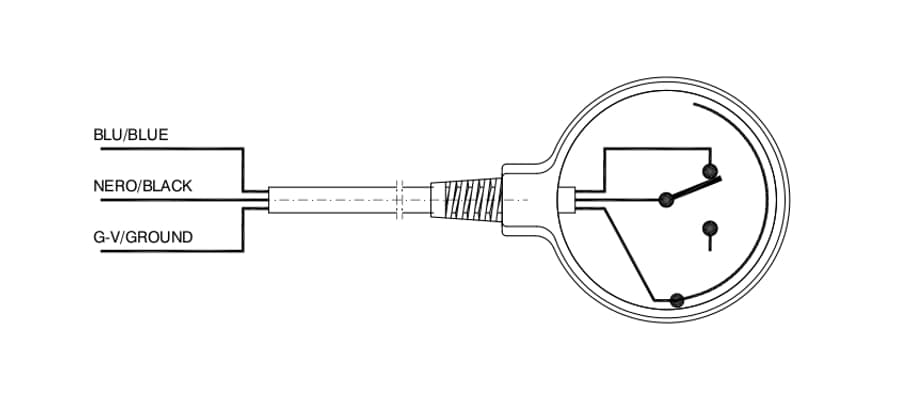

NO or NC version with ground
(Insulation class I)
Dual function version
(Insulation Class II)
Main features
- Type of product: level regulator
- Type of water: clear water
- Dimensions: 126x84x43 mm
- Weight: 137 g
- Cubage: 249 cm³
- Floating body’s material: shockproof non-toxic polypropylene
*For the grounded version, please specify at the time of order whether it is to be used for filling or emptying.
Specifications
- operating temperature 50 °C
- Storage temperature: -20÷80 °C
- Operating voltage: 230 Vac
- switching voltage: 250 Vac
- Frequency: 50-60 Hz
- Upper switching angle: 45° ±5°
- Lower switching angle: 45° ±5°
- Current with resistive load : 10 A
- Current with inductive load: 4 A
- Microswitch capacity: 16 A
- Protection level: IP 68
- Operating pressure: 5 Bar
Standard cables
PVC H05VV-F 3×1 – Ø 9 mm
(double function)
H07RN-F 3G1 – Ø 8,8 mm
(emptying or filling, on request)
H07RN-F 3×1 – Ø 8,8 mm
(double function)
H07RN8-F 3G1 oil resistant – Ø 8,8 mm
(emptying or filling, on request)
