Gravity
Gravity: Vertical Float switch
The Gravity float switch is designed for clear water level control. With a current rating of 10(8) A / 250 V, the GRAVITY is equipped with a high-performance 21 A microswitch with self-cleaning contacts, guaranteeing efficient and durable function.
Distinguished by its compact dimensions, the Gravity consists of an injection-moulded polypropylene outer case. Internally, it houses a 21 A – 250V – 50-60Hz switch.
The electrical wiring terminals are protected by a removable cover with cable gland, which ensures secure and reliable attachment of the connecting cable.

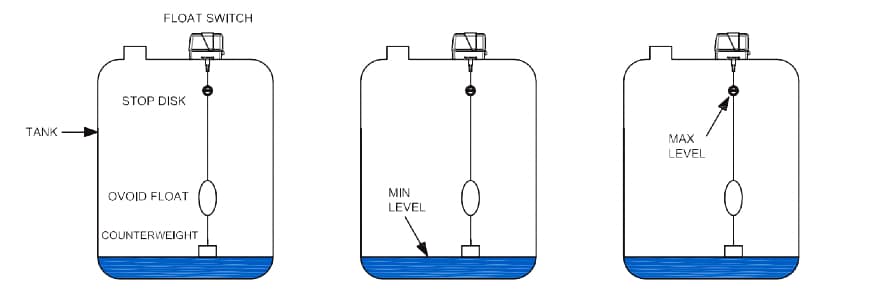

The Gravity switch allows easy and precise adjustment by means of a string with counterweight, ogive float and stop disc. This configuration guarantees maximum versatility and simplicity of use, adapting perfectly to different applications.
The Gravity is the perfect solution for anyone looking for a reliable and intuitive device for clear water level control.

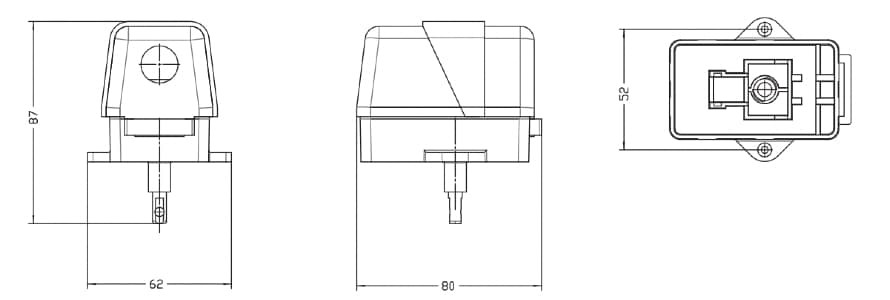

Technical drawing
Main features
- Product type: vertical float switch
- Water type: clear water
- Material: shockproof non-toxic polypropylene
Specifications
- Operating temperature: 50 °
- Storage temperature: -20÷80 °C
- Operating voltage: 230 Vac
- Switching voltage: 250 Vac
- Frequency: 50-60 Hz
- Current with resistive load: 10 A
- Current with inductive load: 8 A
- Microswitch capacity: 21 A
- Protection level: IP 56
