Micro: clear water level regulator for tight spaces
Micro: clear water level regulator for tight spaces
Our MICRO level regulator is the ideal solution for clear water level control in small spaces.
With a current rating of 10(4) A / 250 V and equipped with a high-performance microswitch with self-cleaning contacts, this product guarantees efficient and reliable operation.
Small in size but big in performance, the MICRO regulator is perfect for direct application on pumps in confined spaces.
The applications of the MICRO level regulator are wide and varied; it is adapted for regulating levels in small wells and tanks. Its compact design makes it ideal for installation in confined spaces, without compromising efficiency and safety.
Micro for clear water level control is available in various colors.

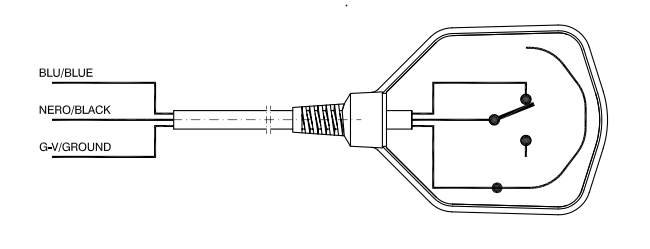

Technical drawing
NO or NC version with ground
(Insulation class I)
Main features
- Product type: Level regulator for tight spaces
- Water type: Clear water
- Dimensions: 133x70x40 mm
- Weight: 110 g
- Cubage: 178 cm³
- Floating body’s material: shockproof non-toxic plypropylene
*Specify, when ordering, if it should be usedfor filling emptying.
Specifications
- operating temperature: 50 °
- Storage temperature: -20÷80 °C
- Operating voltage: 230 Vac
- switching voltage: 250 Vac
- Frequency: 50-60 Hz
- Upper switching angle: 30° ±5°
- Lower switching angle: 30° ±5°
- Current with resistive load: 10 A
Standard cables
H07RN-F 3G1 – Ø 8,8 mm
(emptying or filling, on request)
H07RN-F 3G1 – Ø 8,8 mm
(emptying or filling, on request)
